I pick and
place
Do you want to mount the SMD-components, but the use of tweezers leads you into a rage? You do not want to spend money on expensive equipment and inconvenient? Then the vacuum pick-up device is exactly what you need.
top
features
01 / fast
Pick an place as fast as one-two. Try it!
02 / reliably

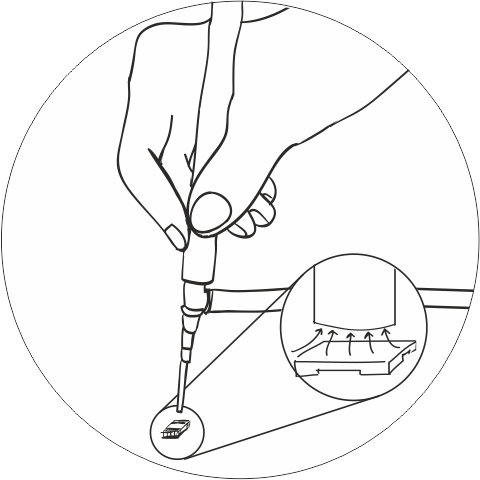

Place exactly where you want it. The nozzle tip is made small providing clear view from any angle or side.
03 / easily
The part never jumps off the board when released. no need for corrections.
how does it work
1

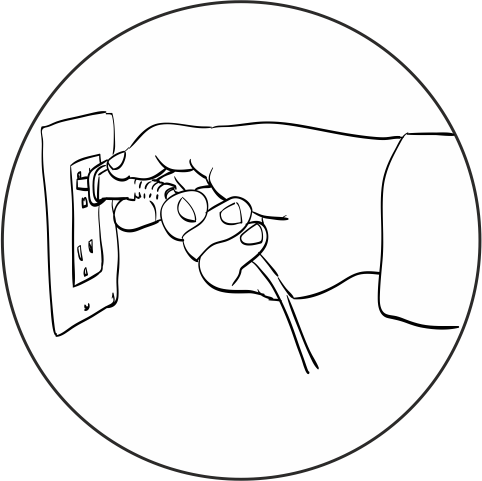

Turn the pump on.
2
Insert proper nozzle.
3

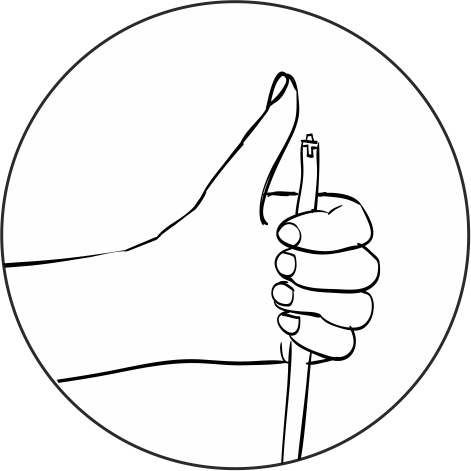

Close the end of the open tube by a thumb finger (one hand). The air is sucked through the nozzle now.
4

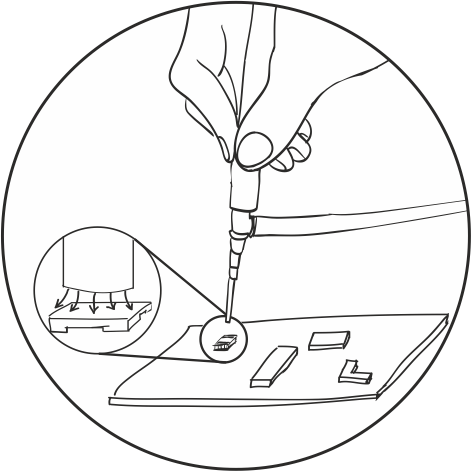

Holding the handle by the other hand pick the part.
5
Place the part on its place on the PCB. Ensure that the part is in a good contact with the PCB. Do not try to drop the part from a height.
6

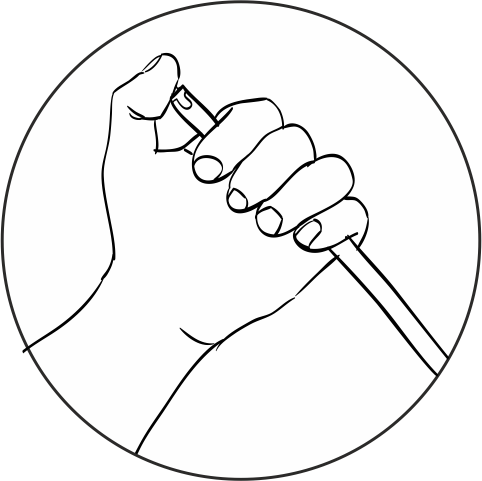

Release the end of the open tube.
7

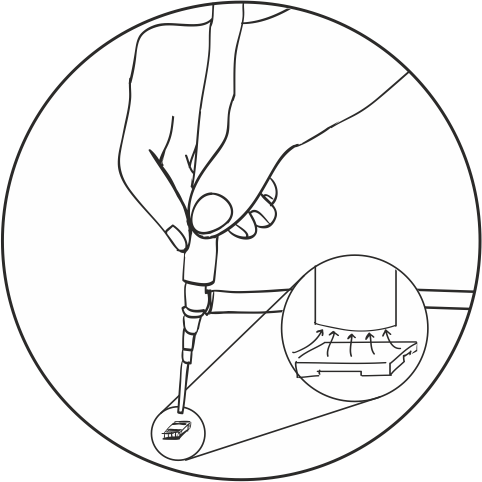

The air flow at the nozzle will switch from sucking in to blowing off. Te positive air pressure build up inside the nozzle is a carefully engineered feature which prevents the part from sticking to the nozzle. Lift the nozzle leaving the part at its place on the PCB.

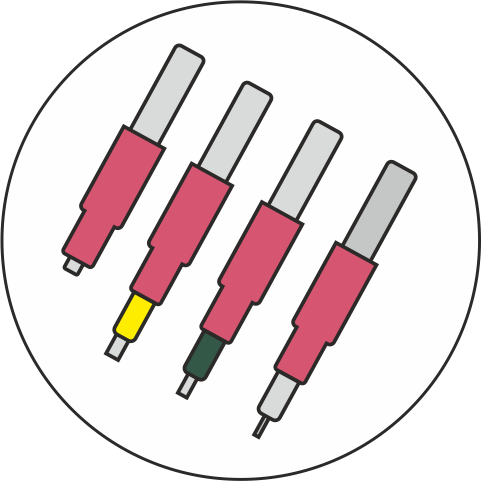

Nozzle
Variety of nozzle sizes for different parts, durable stainless steel ends, easy to replace.

Red-transparent nozzle.
It allows you to mount the elements 0201 (0.6 mm × 0.3 mm) and 0402, 0603, 0805.

Red-green nozzle.
It allows you to mount the elements 0402 (1.0 mm × 0.5 mm), 0603 (1.6 mm × 0.8 mm), 0805 (2.0 mm × 1.25 mm).

Red-yellow nozzle.
It allows you to mount the elements 0603 (1.6 mm × 0.8 mm), 0805 (2.0 mm × 1.25 mm).

Red nozzle.
It allows you to mount the elements 0805 (2.0 mm × 1.25 mm).

$99, free shipping from CA, no sales tax!
delivery set
box 1

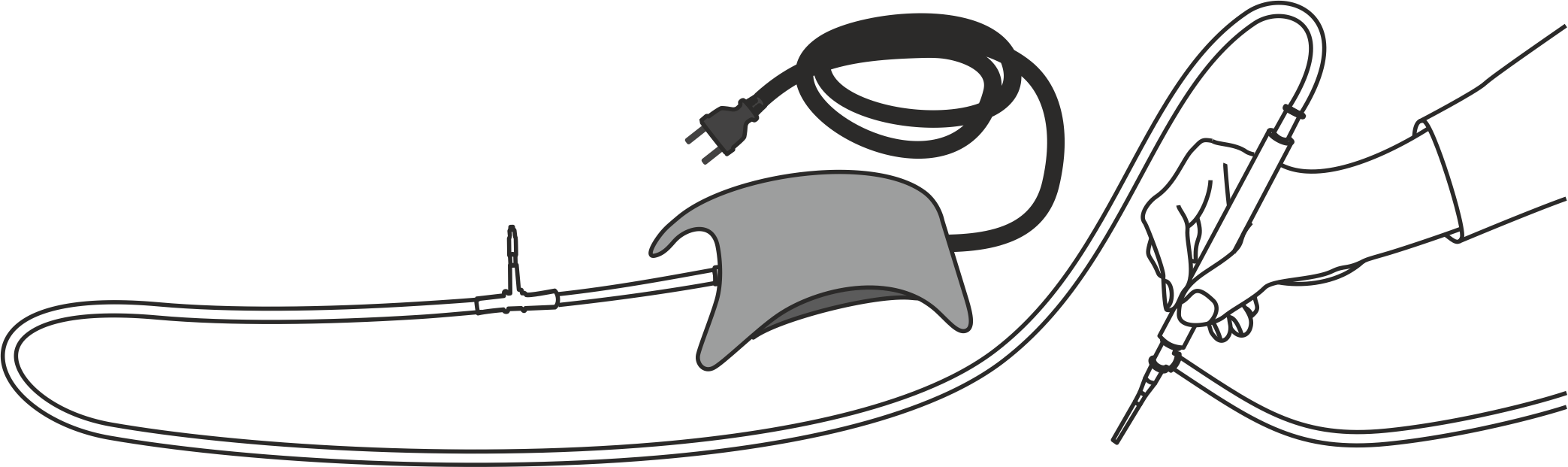

compressor 1
vacuum pick-up pen 1
connecting hose 1
nozle set 4
